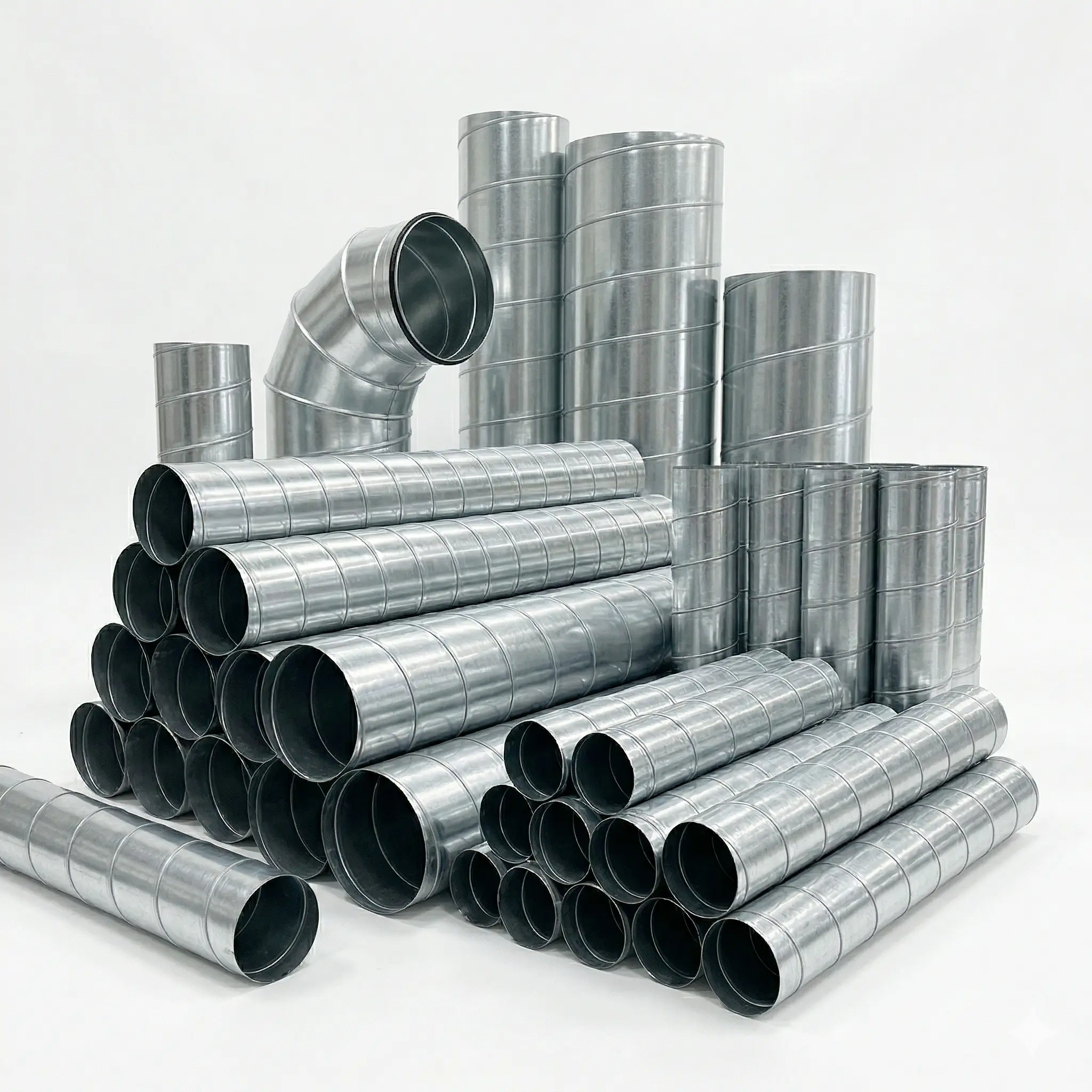

Spiral Round Duct
Category: Air Duct
Overview
Spiral round duct is fabricated using a continuous helical lock-seam process from hot-dip galvanized steel coil. The spiral seam provides superior rigidity and airtightness compared to longitudinal-seam duct, with leakage rates typically below 1%. Used extensively in commercial HVAC, industrial ventilation, and exhaust systems where smooth airflow and long straight runs are required.
Technical Specifications
| Base Material | Galvanized Steel G-90, ASTM A-653 |
| Thickness | 0.50 – 1.6 mm (26G – 16G, SMACNA gauge schedule) |
| Diameter | Ø 100 – 900 mm |
| Standard Length | 1.5 m / 3.0 m per section |
| Seam Type | Spiral lock-seam (helical) |
| Surface | Hot-dip galvanized (zinc coating G-90) |
| Max Temperature | 120°C continuous |
| Pressure Rating | Low/Medium: up to 2,500 Pa |
| Leakage Rate | ≤1% at design pressure |
| Standard | SMACNA HVAC Duct Construction Standards / ASTM A-653 |
Applications
- Commercial & industrial HVAC air distribution
- industrial exhaust systems
- dust collection
- clean room ventilation
- laboratory fume exhaust
Key Features
- Low pressure drop vs rectangular duct
- ≤1% leakage rate (airtight)
- lightweight & long-span capability
- corrosion-resistant galvanized surface
- wide diameter range Ø100–900mm
- compatible with all standard fittings & accessories
For technical inquiries & custom orders: supakorn@stico.co.th | Tel: 02-035-9589
