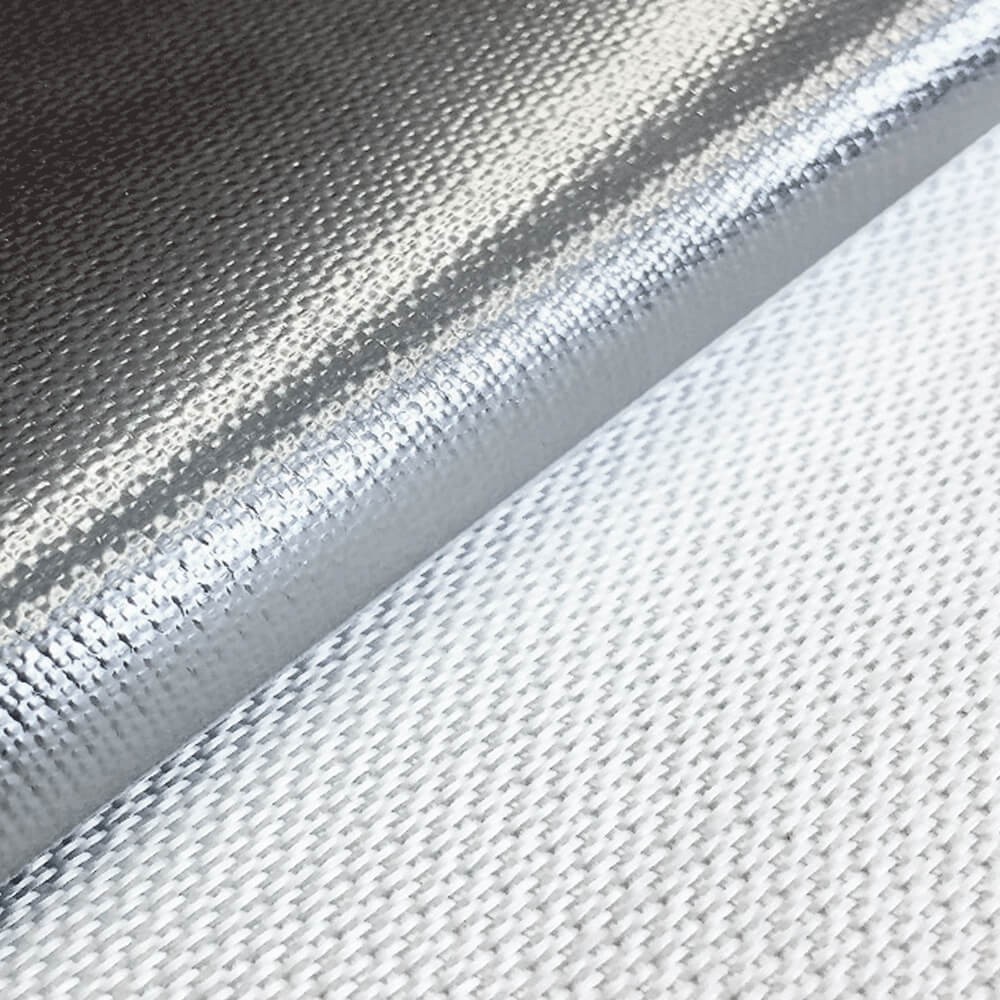

SC531 Aluminium Fiberglass Coated Fabric
Category: Fiber Glass
Overview
SC531 is STICO’s benchmark aluminium fiberglass coated fabric, combining a high-tensile plain-weave E-glass base cloth with dual-side aluminium foil lamination using heat-resistant adhesive. The 500 g/m² weight delivers excellent durability and flexibility for sewing and die-cutting. Used across oil & gas, power generation, automotive, and HVAC industries as the preferred outer facing for removable insulation jackets and radiant heat barriers.
Technical Specifications
| Model | SC531 |
| Weight | 450 g/m² |
| Thickness | 0.45 mm |
| Roll Width | 1 m |
| Roll Length | 50 m |
| Service Temperature | Up to 550°C |
| Colour | Silver |
Applications
- Removable insulation jackets
- fire curtains
- welding blankets
- oil & gas pipe insulation covers
- power plant thermal barriers
- HVAC duct insulation
- automotive exhaust heat shields
Key Features
- ≥92% dual-side infrared reflectivity
- non-combustible base (no toxic smoke)
- sewable and grommetable
- waterproof and oil-resistant
- RoHS-compliant
- EN and ASTM certified
Note: The aluminium foil layer rating (300–400°C) is lower than the base fiberglass (550°C). For applications exceeding 350°C continuous, consider SC600 Silica Fabric.
For technical inquiries & custom orders: supakorn@stico.co.th | Tel: 02-035-9589
