Plate Heat Exchanger
Category: Plate heat exchanger
Overview

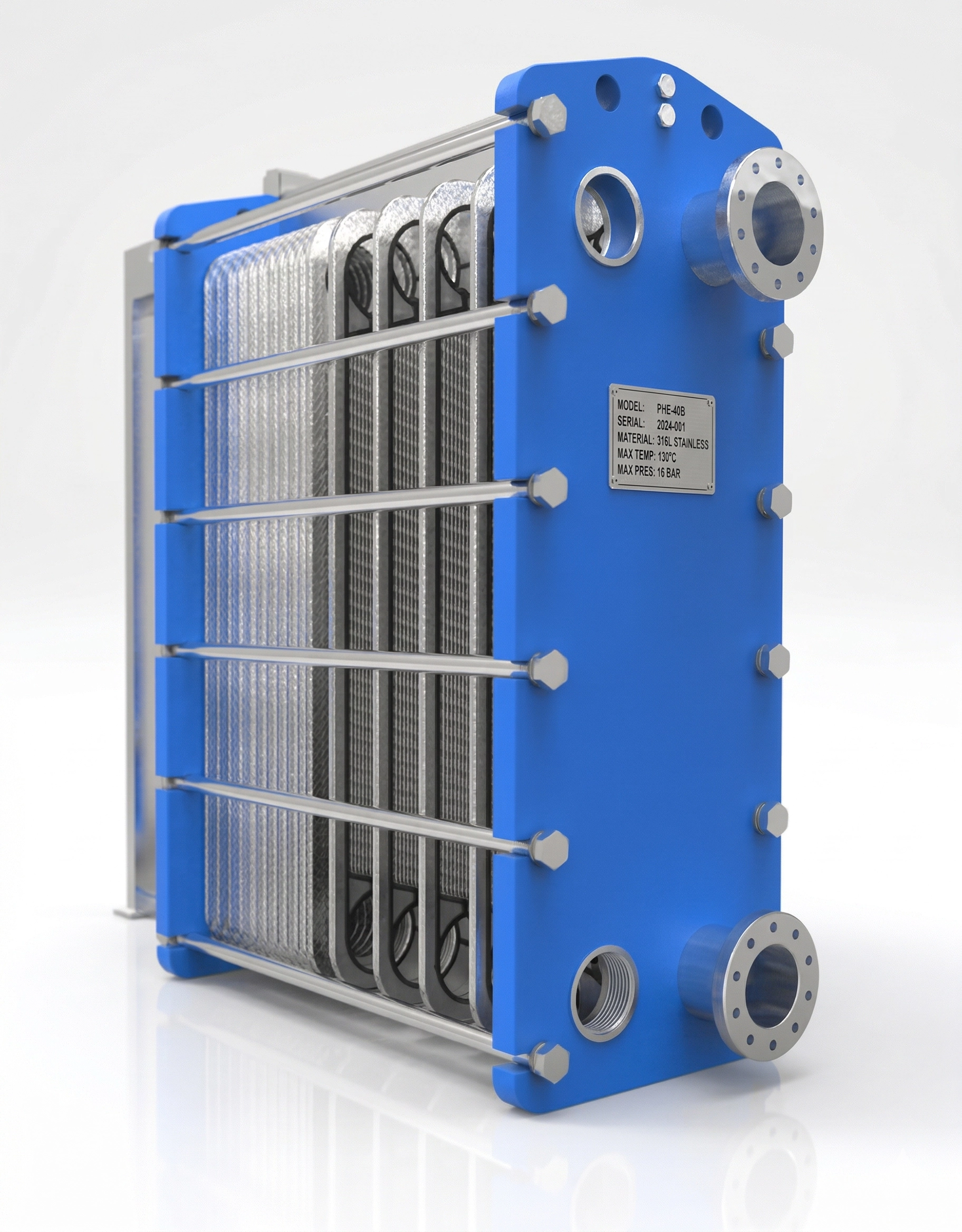

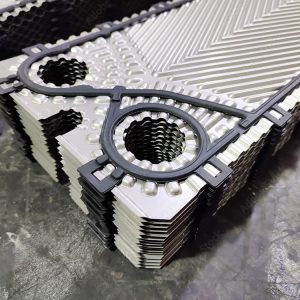

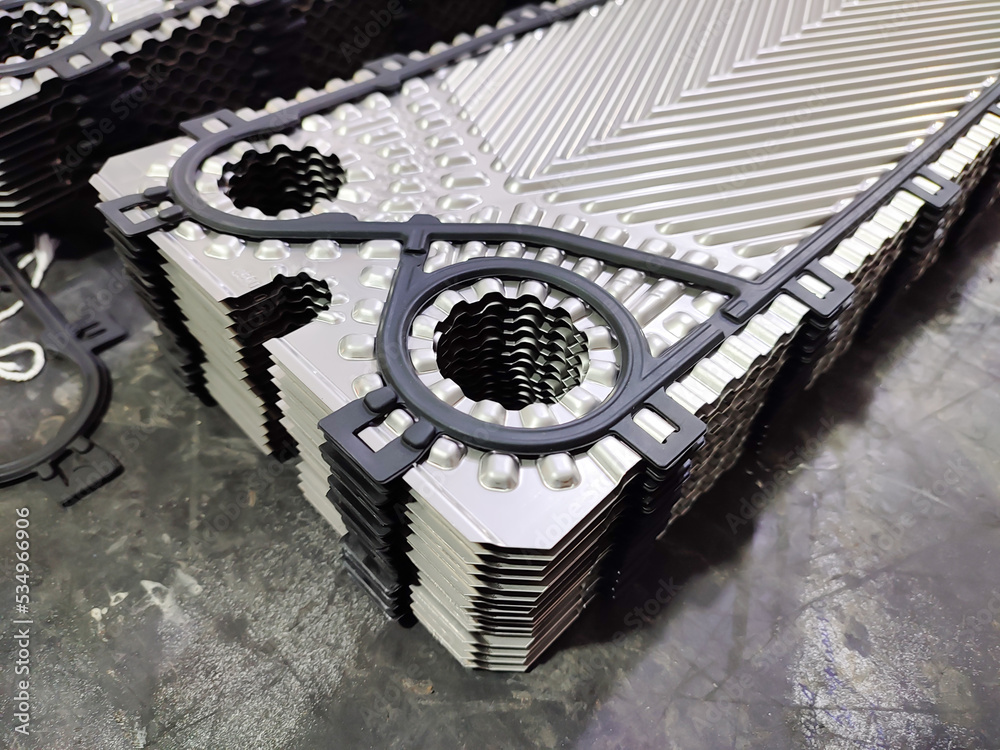

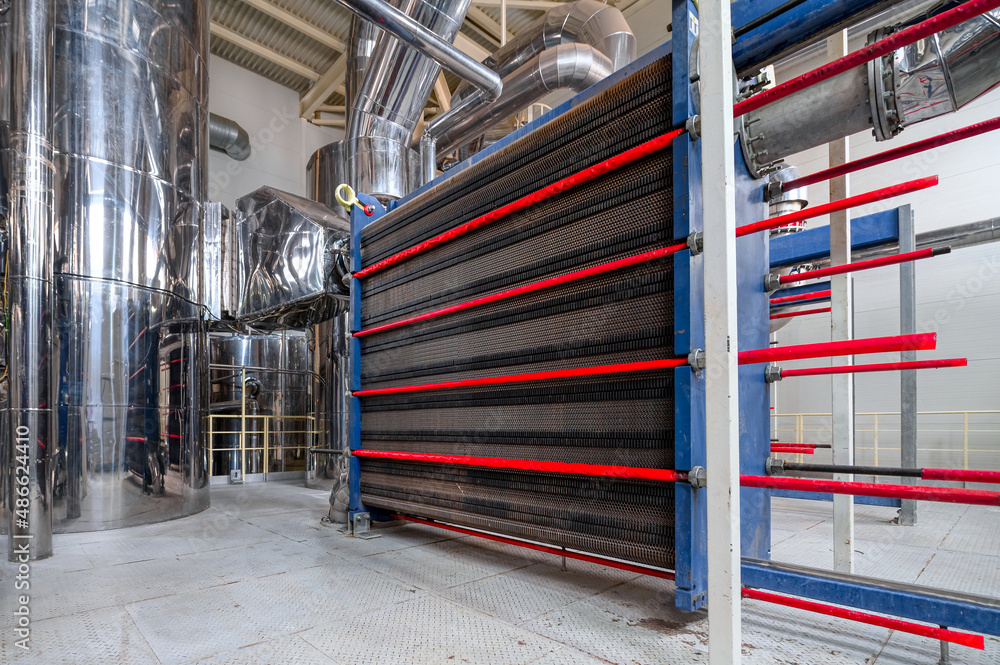

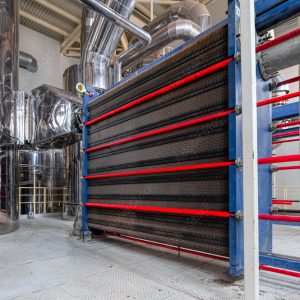

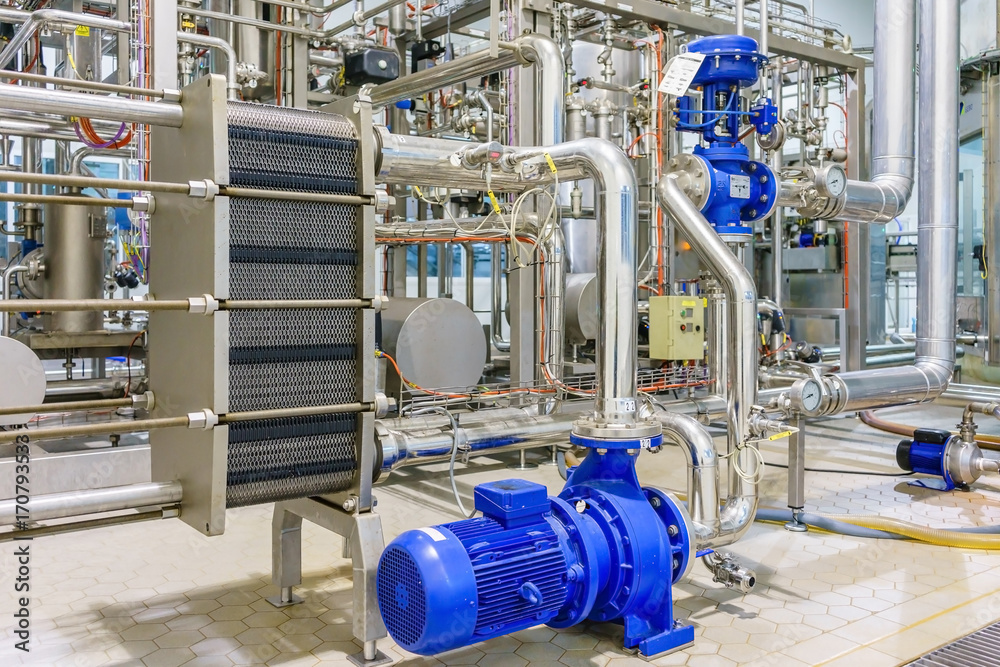

Gasketed plate heat exchangers (PHE) transfer thermal energy between two fluid streams through a series of corrugated stainless steel plates clamped between a frame and a pressure plate. The corrugated chevron pattern creates high turbulence at low flow velocity, achieving heat transfer coefficients 3–5× higher than shell-and-tube exchangers of equivalent duty. Plates are fully accessible by loosening the tie bolts, enabling cleaning, inspection, and capacity adjustment by adding or removing plate pairs without pipe disconnection.
Technical Specifications
| Plate Material | SUS304 / SUS316L / Titanium |
| Gasket Material | NBR / EPDM / Viton / PTFE-encapsulated |
| Frame Material | Carbon steel (epoxy-coated) |
| Design Pressure | Up to 25 bar |
| Design Temperature | -20°C to +180°C |
| Flow Rate | 1 – 2,000 m³/h per unit |
| Plate Count | 10 – 300 plates (expandable) |
| Connection Size | DN25 – DN500 |
| Heat Transfer Area | 0.1 – 2,200 m² |
| Standard | ASME VIII / EN 13445 / PED 2014/68/EU |
Applications
- HVAC heating and cooling circuits
- industrial process heating and cooling
- food & beverage pasteurization
- pharmaceutical process cooling
- district heating substations
- marine cooling systems
Key Features
- Heat transfer coefficient 3–5× higher than shell-and-tube
- compact footprint — minimal floor space
- fully expandable by adding plates
- easy cleaning without pipe disconnection
- wide gasket material selection for chemical compatibility
- low fouling due to high turbulence
Note: Sizing and selection require process data (flow rates, temperatures, fluid properties). Contact STICO for engineering proposal.
For technical inquiries & custom orders: supakorn@stico.co.th | Tel: 02-035-9589
