PID Duct
Category: PID DUCT
Overview

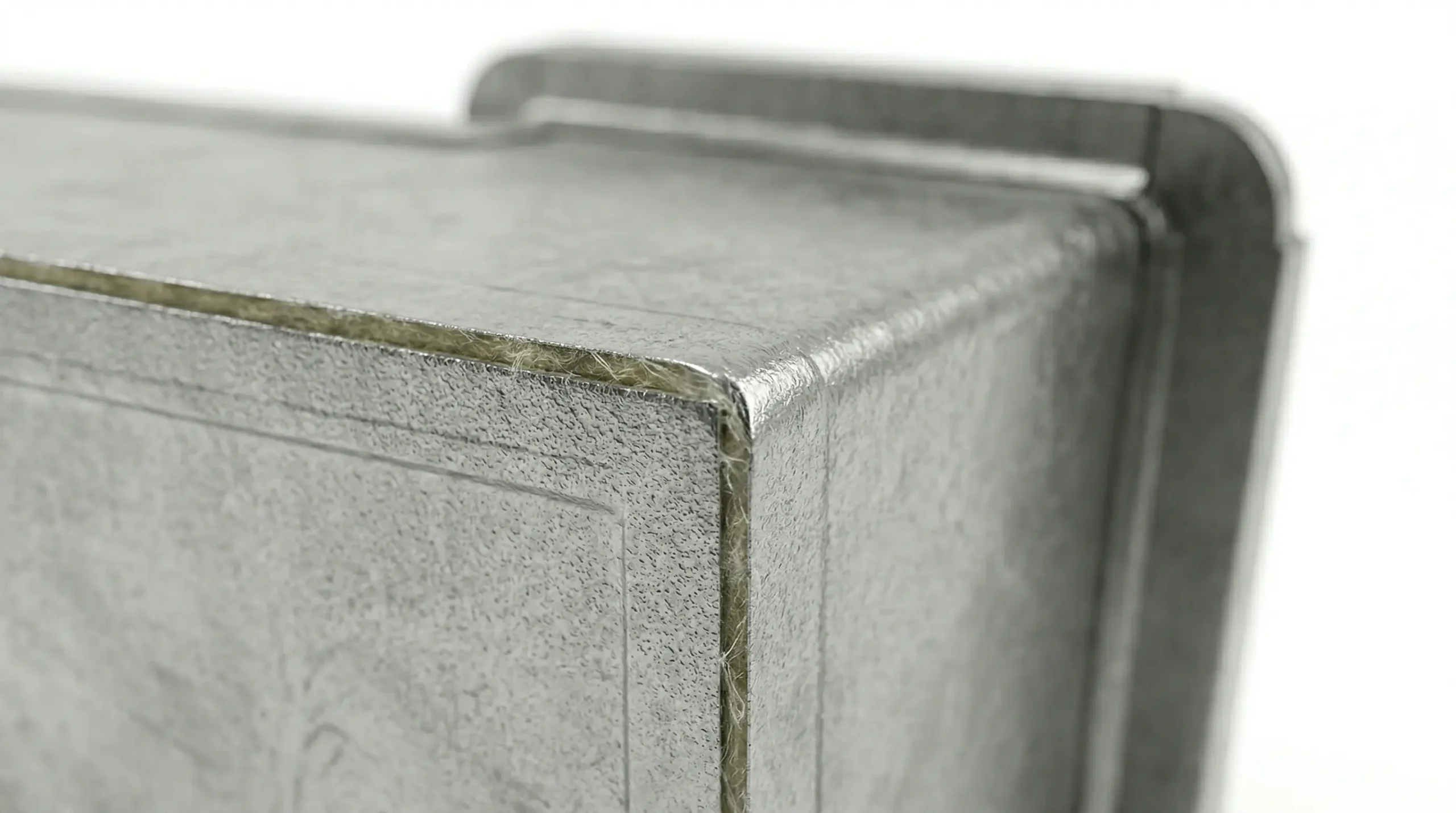

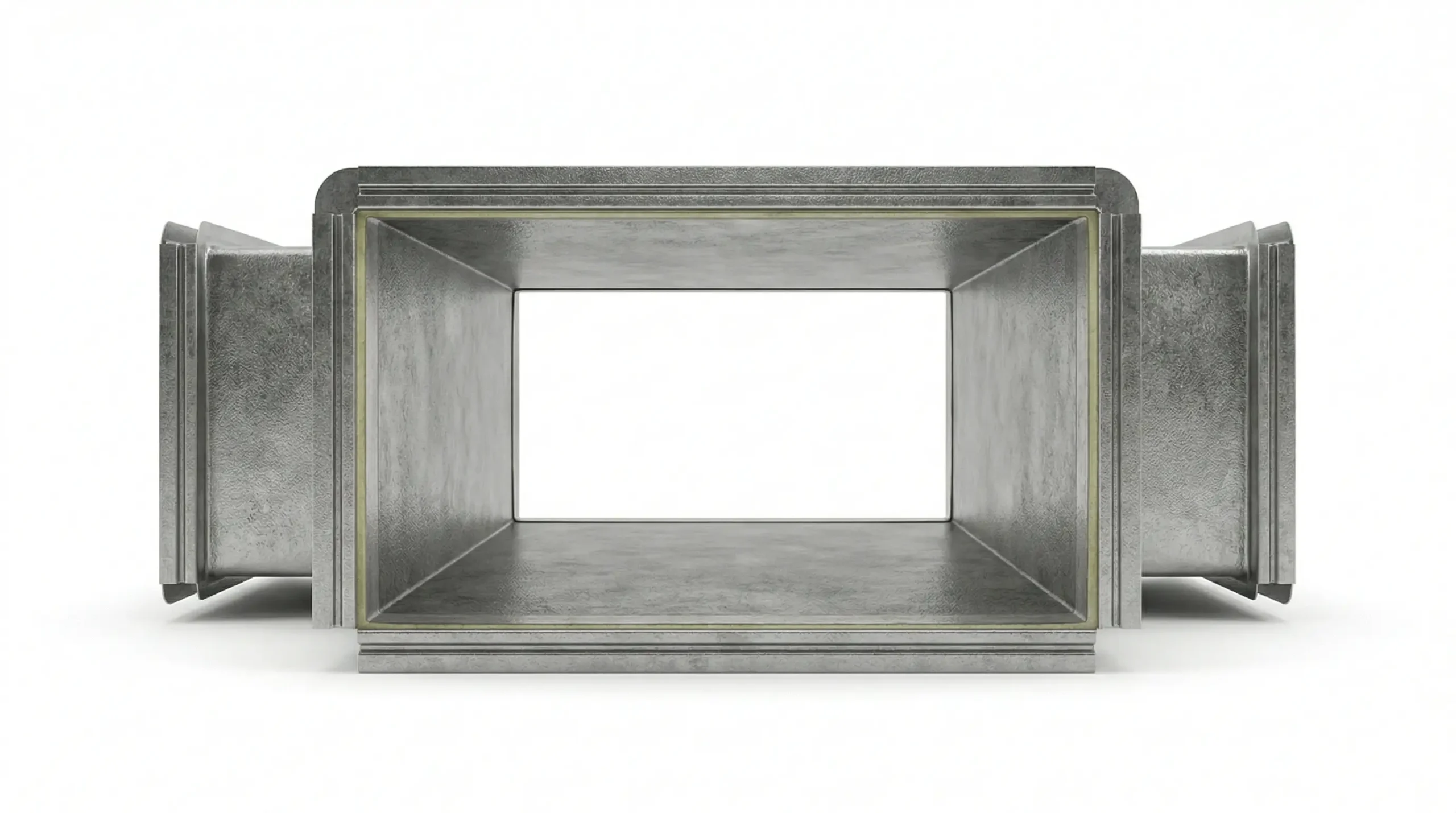

PID Duct eliminates the need for field-applied thermal insulation by integrating a phenolic foam core between two aluminium foil facings during factory production. The groove-and-tongue joint system creates airtight duct sections with excellent thermal performance. PID systems are lighter and faster to install than traditional metal duct + insulation.
Technical Specifications
| Core | Phenolic Foam |
| Facing | Double-side aluminium foil 0.08 mm |
| Panel Thickness | 20 / 30 / 40 mm |
| Thermal Conductivity | λ = 0.022 W/m·K |
| Temperature | -30°C to +120°C |
| Fire Class | EN 13501-1 Class B-s2,d0 |
| Panel Size | 1,200 × 2,400 mm |
| Standard | UL 181 |
Applications
- Commercial building HVAC
- hospital & cleanroom air-conditioning
- hotel HVAC systems
- food processing ventilation
- airport terminal HVAC
Key Features
- Factory insulated (no field wrap)
- lightweight vs metal duct
- excellent thermal and acoustic performance
- smooth inner surface for low pressure drop
- fast installation with groove-tongue joint system
