Lobe Pump
Category: Pump
Overview

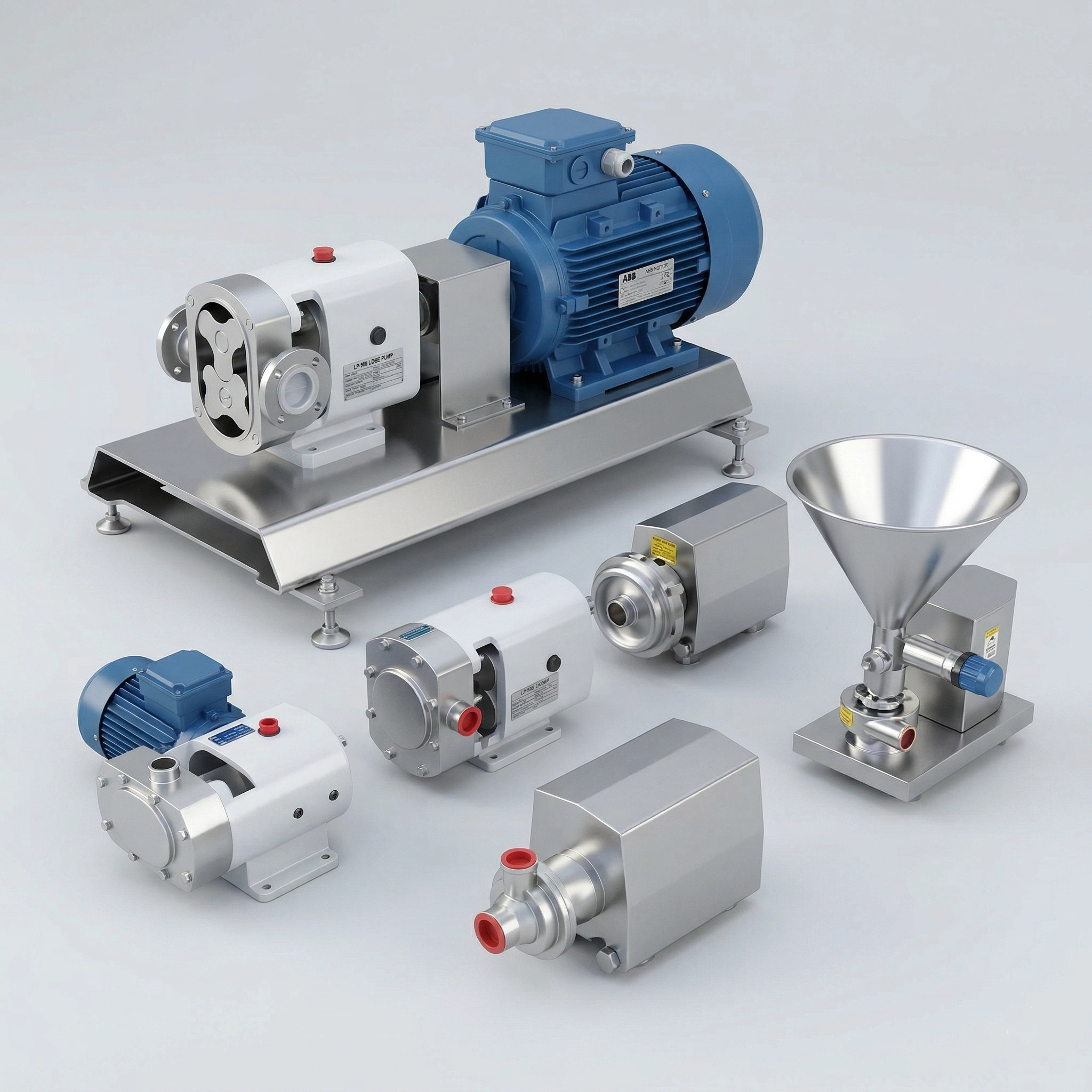

Rotary lobe pumps transfer fluid using two counter-rotating lobes that sweep fluid around the pump casing without the lobes contacting each other. The non-contacting rotors and gentle pumping action preserve particle integrity and minimize shear stress, making lobe pumps the standard choice for food-grade, pharmaceutical, and cosmetic fluid transfer. CIP (clean-in-place) and SIP (sterilize-in-place) compatible designs eliminate disassembly for routine cleaning.
Technical Specifications
| Type | Rotary lobe (positive displacement) |
| Rotor/Body Material | SUS316L polished (Ra ≤ 0.8 µm) |
| Lobe Options | Tri-lobe / bi-lobe stainless |
| Seal Type | Single / double mechanical seal (FDA elastomers) |
| Max Flow Rate | Up to 300 m³/h |
| Max Pressure | 15 bar |
| Temperature Range | -10°C to +200°C |
| CIP/SIP Compatible | Yes |
| Port Connection | Tri-clamp / DIN 11851 / flanged |
| Standard | EHEDG / 3-A Sanitary / FDA-compliant |
Applications
- Food and beverage — yoghurt, cream, sauces, beer
- pharmaceutical API and excipient transfer
- cosmetic and personal care product transfer
- chemical slurry and polymer transfer
- bioethanol and fermentation broth handling
- paint and coating recirculation
Key Features
- Gentle low-shear pumping — preserves product integrity
- CIP/SIP compatible — no disassembly for cleaning
- handles viscosities from 1 to 1,000,000 cP
- bi-directional flow capability
- hygienic polished surfaces (Ra ≤ 0.8 µm)
- EHEDG and 3-A certified options
