Flexible Metal Duct
Category: Air Duct
Overview

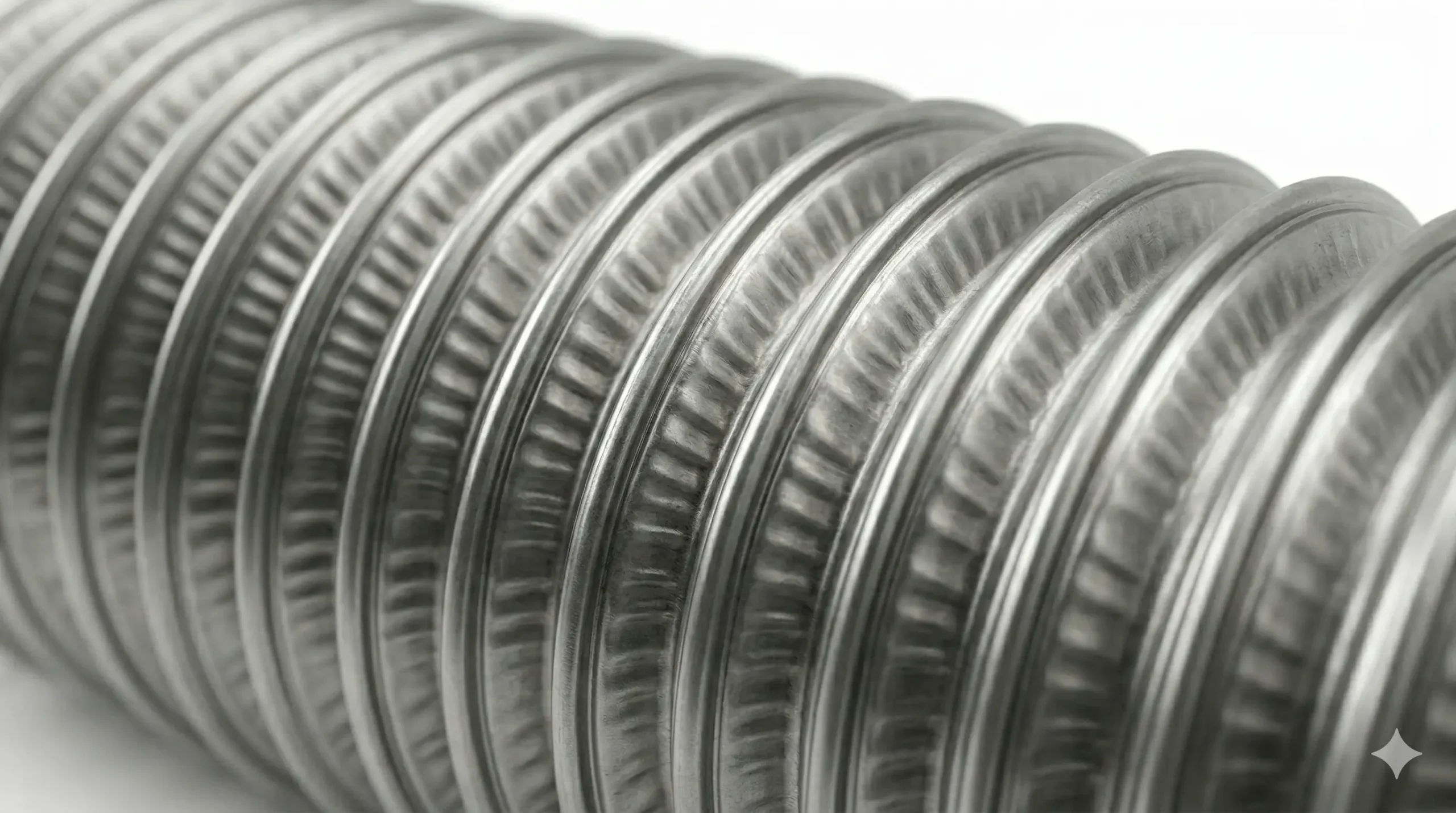

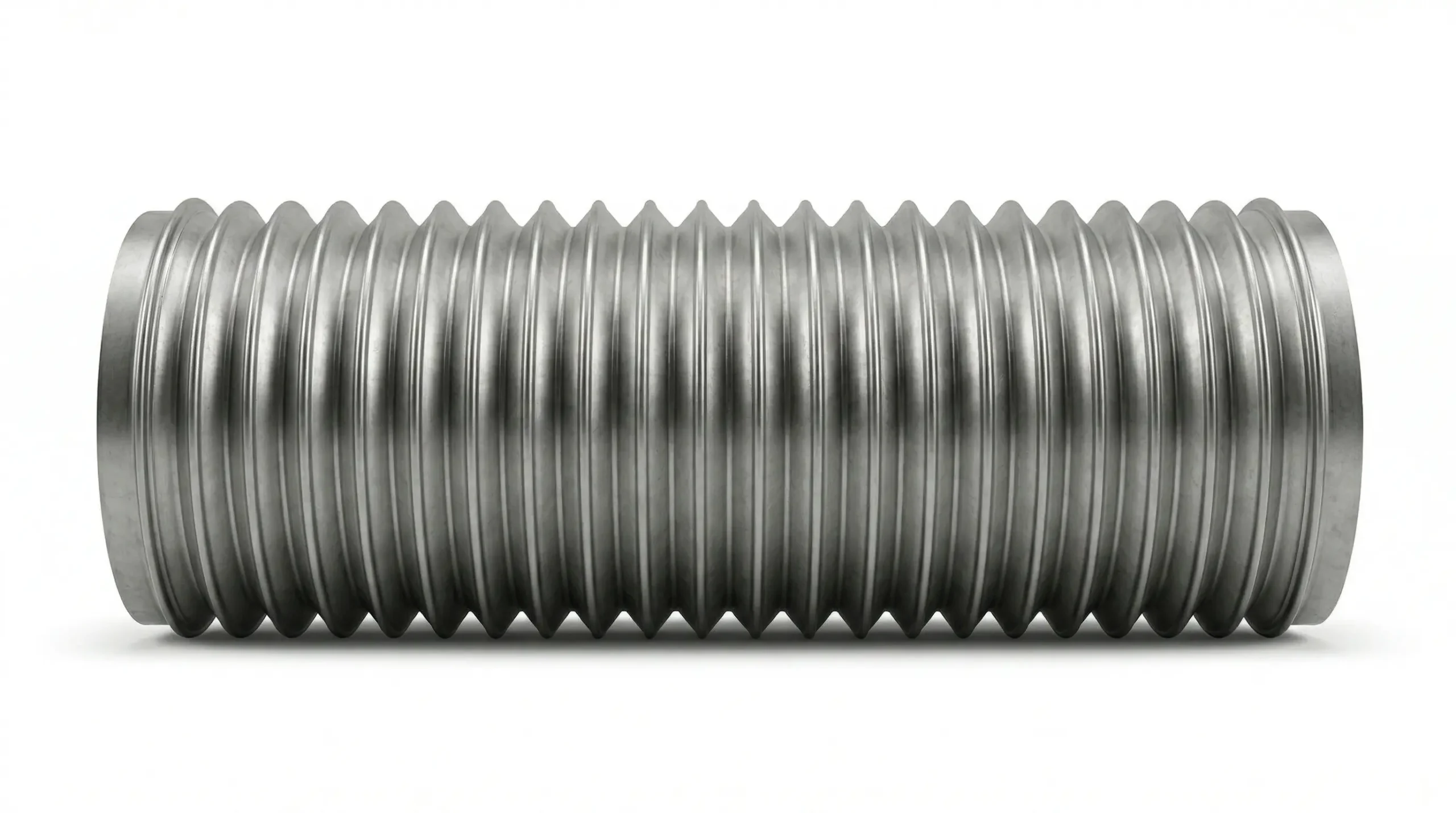

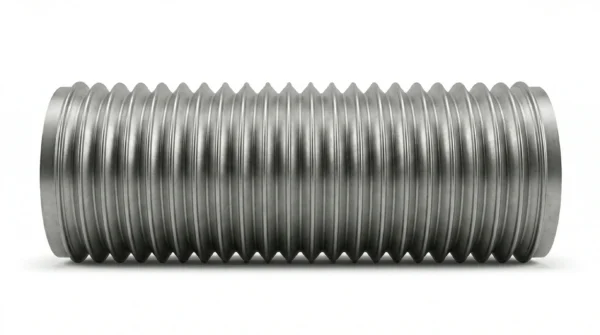

Flexible metal duct is formed from interlocking spiral-wound metal strip that provides full flexibility while maintaining structural integrity under high-temperature conditions. The interlocking construction allows angular deflection up to 90° and accommodates vibration and thermal expansion without stress on joints. Stainless steel grade is used for exhaust temperatures up to 550°C.
Technical Specifications
| Material | Galvanized Steel / SUS304 Stainless |
| Strip Thickness | 0.10 – 0.20 mm |
| Diameter | Ø 80 – 500 mm |
| Angular Deflection | Up to 90° |
| Max Temperature | 550°C (SUS304) |
| Length | 3.0 / 6.0 m extended |
| Standard | UL 1978 / SMACNA |
Applications
- Generator & engine exhaust
- industrial kitchen hood exhaust
- dryer & industrial dryer venting
- fume extraction flexible connections
- HVAC terminal flex connections
Key Features
- High-temperature rated (SUS304 to 550°C)
- vibration-absorbing
- bends without kinking
- compressible for easy installation
- corrosion-resistant stainless option
For technical inquiries & custom orders: supakorn@stico.co.th | Tel: 02-035-9589
