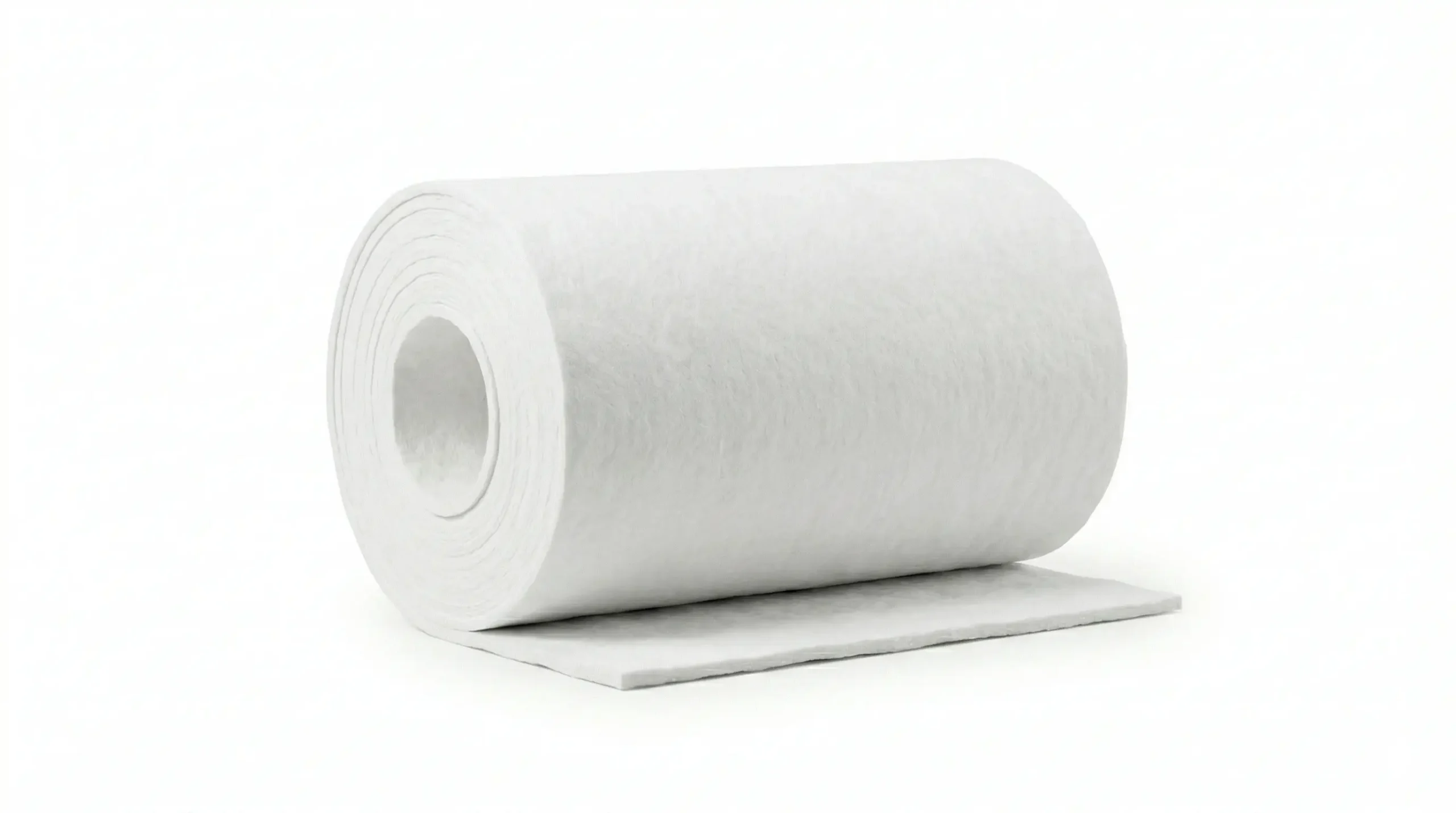

Ceramic Fiber Paper
Category: Ceramic Fibers
Overview
Ceramic fiber paper is a thin, lightweight sheet product formed by wet-laying ceramic fibers with an organic binder. It provides a smooth, uniform surface ideal for high-temperature gasketing and sealing applications. The binder burns off cleanly at approximately 300°C, leaving a pure fiber mat with excellent thermal stability.
Technical Specifications
| Composition | Alumino-silicate + organic binder |
| Thickness | 1 / 2 / 3 / 6 mm |
| Weight | 200 – 400 g/m² |
| Temperature | 760°C – 1,260°C |
| Conductivity | 0.08 W/m·K @ 200°C |
| Binder Burnout | ~300°C |
| Roll Size | W: 610/1,220 mm × L: 15–30 m |
| Standard | ASTM C892 |
Applications
- High-temperature gaskets
- expansion joint filler tape
- furnace door seals
- kiln car insulation pads
- fiber optic cable high-temp protection
- backup insulation layer
Key Features
- Precisely controlled thickness
- die-cuttable for custom gasket shapes
- smooth surface for effective sealing
- flexible even at low temperatures
- low density easy handling
For technical inquiries & custom orders: supakorn@stico.co.th | Tel: 02-035-9589
