Ceramic Fiber Blanket
Category: Ceramic Fibers
Overview

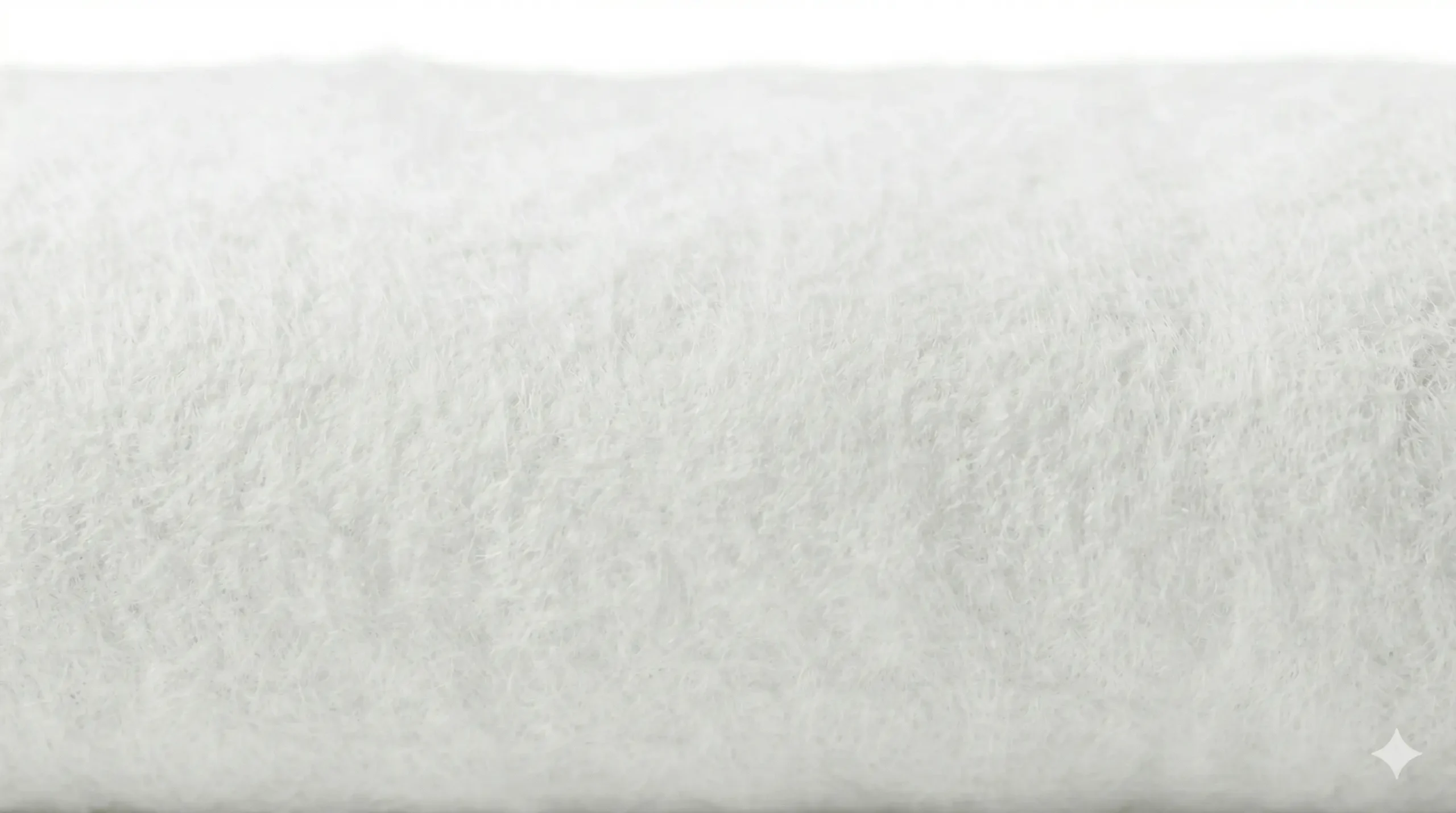

Ceramic fiber blanket is a needled refractory insulation product manufactured from spun alumino-silicate ceramic fibers. The needling process interlocks the fibers to produce a flexible, resilient blanket that maintains dimensional stability at high temperatures. It provides significant energy savings over refractory brick due to its low heat storage capacity.
Technical Specifications
| Composition | Al₂O₃ 47%, SiO₂ 50% |
| Density | 64 / 96 / 128 / 160 kg/m³ |
| Thickness | 13 / 25 / 50 / 75 / 100 mm |
| Temperature Class | 950°C / 1,050°C / 1,100°C / 1,260°C |
| Thermal Conductivity | 0.12 W/m·K @ 600°C |
| Fiber Shrinkage | <3.5% @ 1,000°C / 24h |
| Roll Size | W: 610 or 1,220 mm × L: 7,620 mm |
| Standard | ASTM C892 / ISO 10635 |
Applications
- Furnace and kiln lining
- petrochemical reactor insulation
- backup insulation for refractory brickwork
- boiler insulation
- stress-relieving heat treatment blankets
Key Features
- Lightweight vs refractory brick (low heat storage = fuel savings)
- excellent thermal shock resistance
- easy to cut and install
- asbestos-free
- multiple density grades available
