Ceramic Fiber Board
Category: Ceramic Fibers
Overview

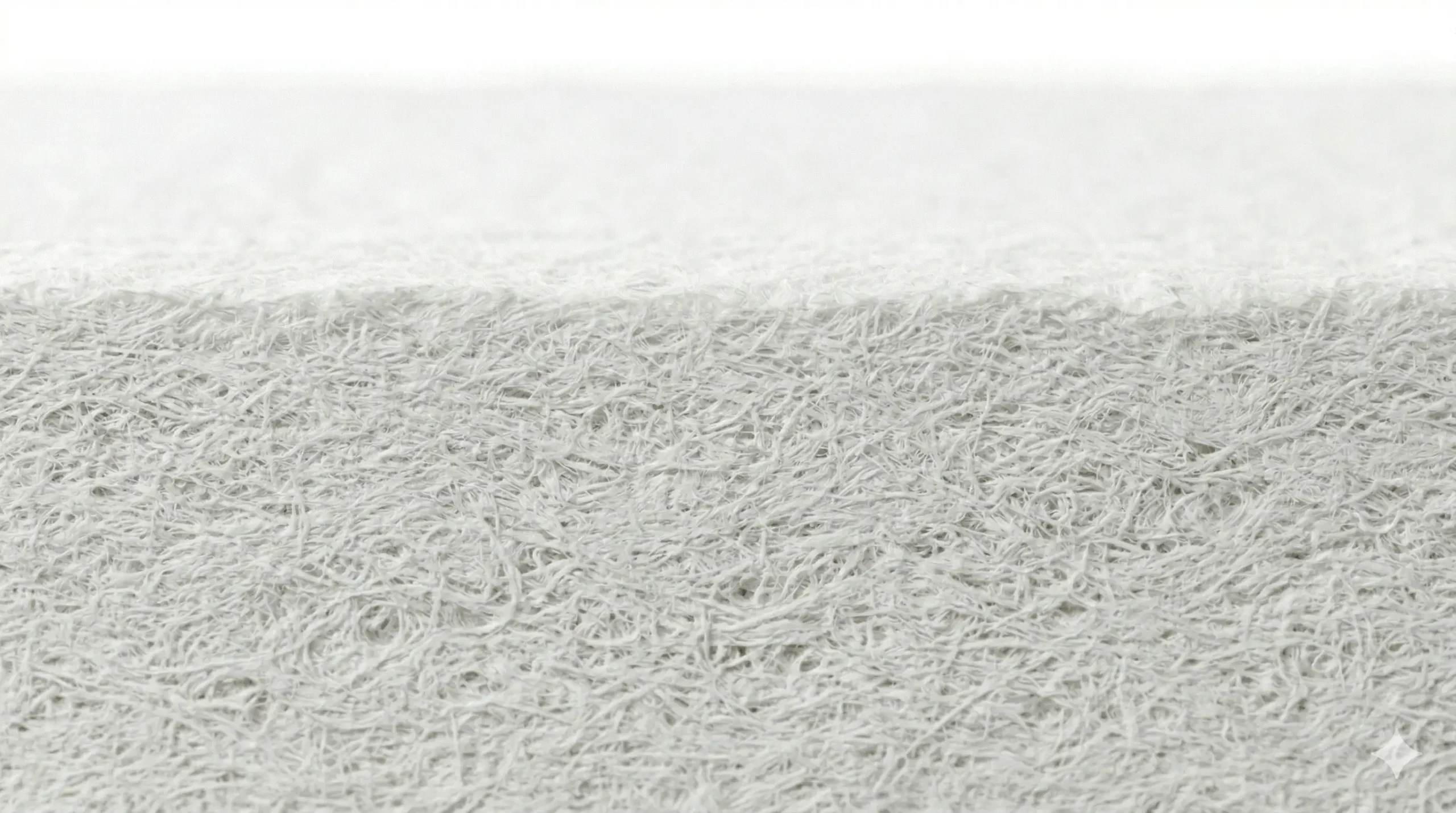

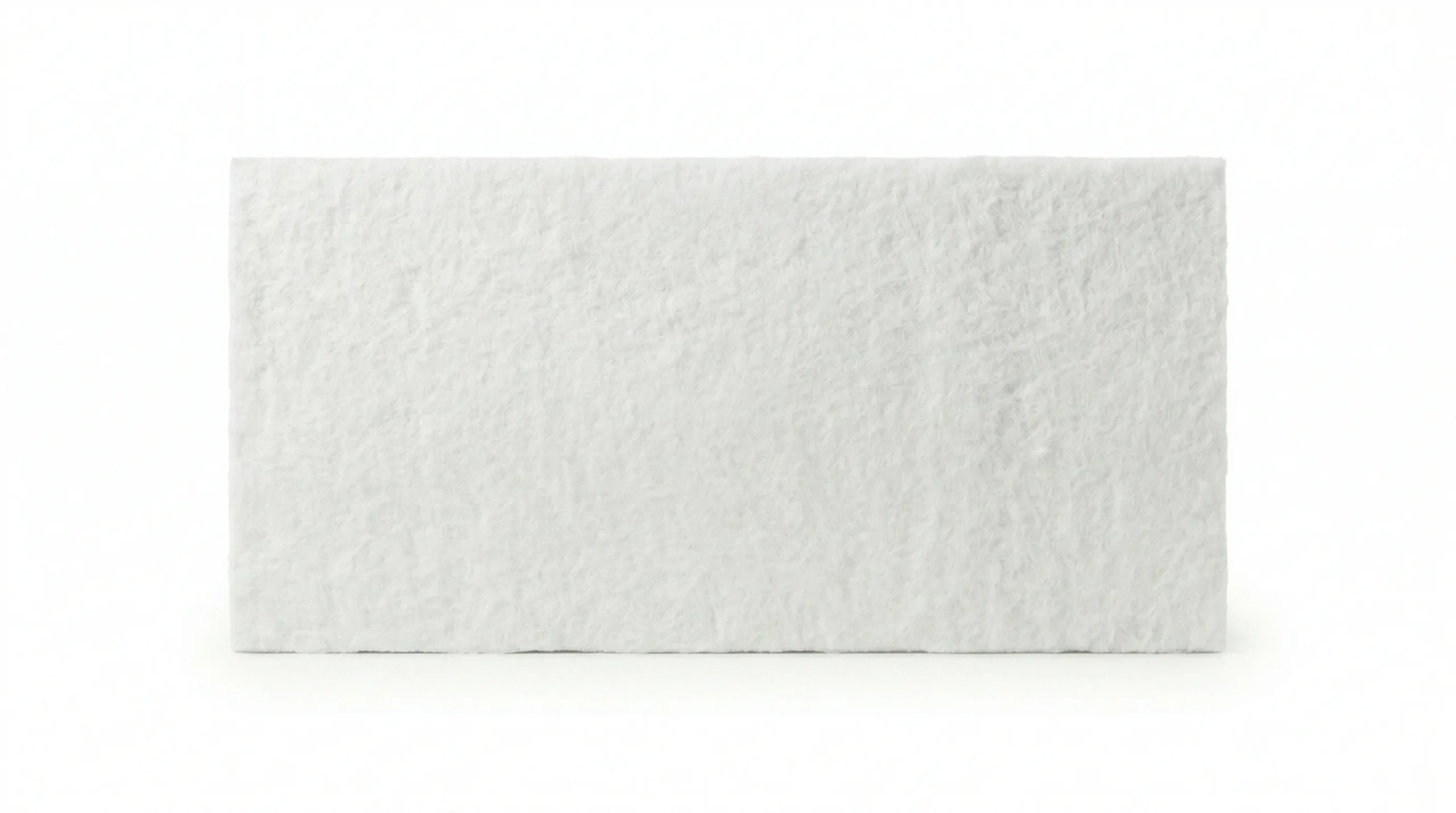

Ceramic fiber board is produced by vacuum-forming a slurry of ceramic fibers with a colloidal silica binder, resulting in a rigid, dimensionally stable insulation product. Unlike blanket, the board can be sawn, milled, and drilled to precise dimensions, making it suitable for furnace doors, kiln walls, and combustion chamber linings where structural integrity is required.
Technical Specifications
| Composition | Alumino-silicate + colloidal silica binder |
| Density | 256 / 384 / 512 kg/m³ |
| Thickness | 25 – 100 mm |
| Temperature | 1,000°C / 1,260°C / 1,430°C grades |
| Compressive Strength | ≥ 0.5 MPa |
| MOR | ≥ 0.6 MPa |
| Conductivity | 0.19 W/m·K @ 800°C |
| Standard | ASTM C1418 / ISO 10636 |
Applications
- Furnace and kiln hot-face lining
- combustion chambers
- molten metal baffles
- industrial oven insulation
- ceramic industry process equipment
- boiler back-up lining
Key Features
- Rigid and machinable (saws
- mills
- drills)
- excellent dimensional stability at temperature
- higher compressive strength than blanket
- low heat storage
- easy replacement
For technical inquiries & custom orders: supakorn@stico.co.th | Tel: 02-035-9589
