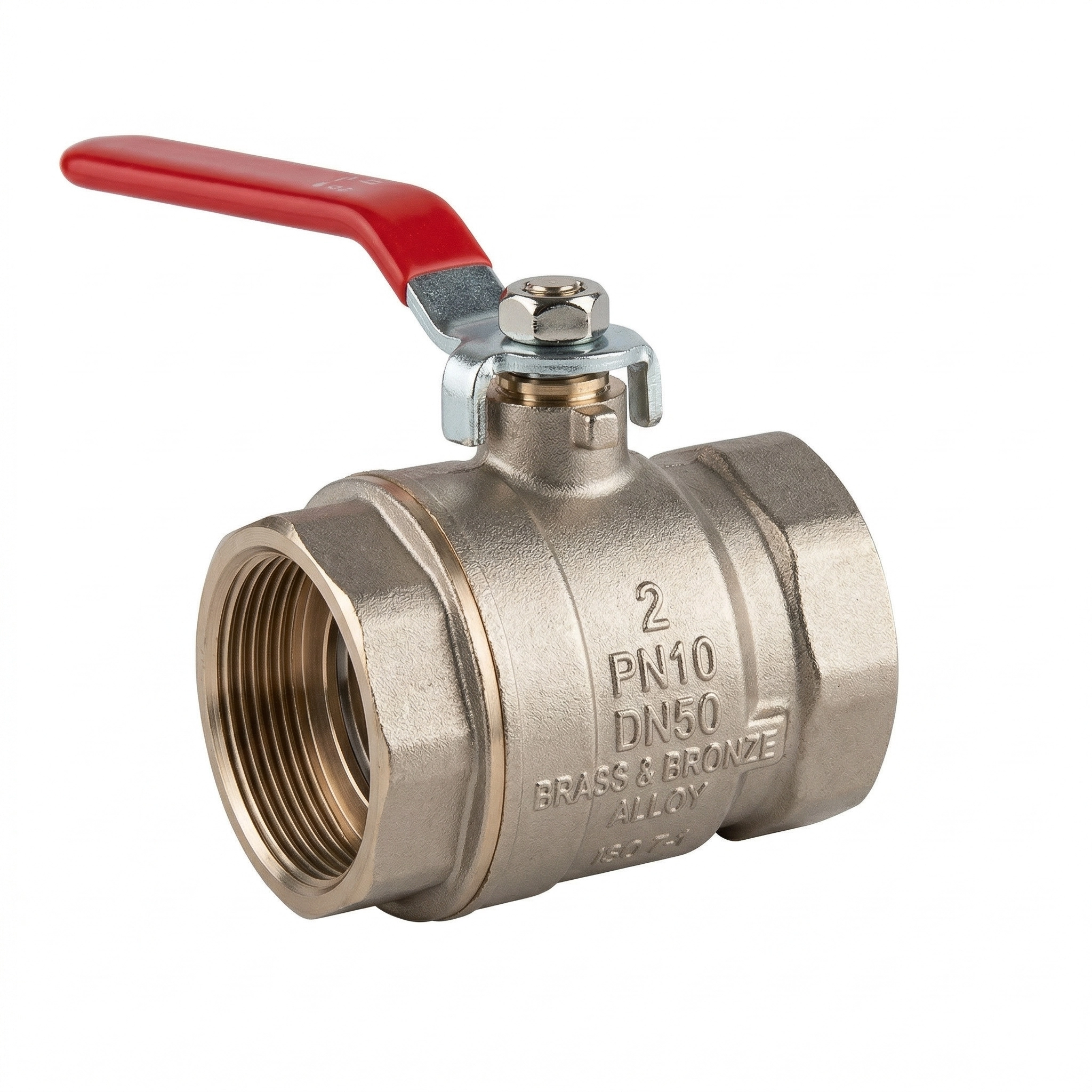

Ball Valve 1-PC
Category: Brass & Bronze Valve
Overview
One-piece brass ball valves provide reliable quarter-turn on/off isolation in a compact, lightweight body machined from a single brass forging. The one-piece body eliminates body joint leakage paths and reduces the number of sealing surfaces compared to two-piece or three-piece designs. Standard PTFE seats deliver bubble-tight shut-off across the full rated pressure range. Suitable for potable water, compressed air, natural gas, and general industrial utility services.
Technical Specifications
| Body Construction | One-piece forged brass (CW617N) |
| Ball / Stem | Chrome-plated brass |
| Seat Material | PTFE (standard) / RPTFE |
| Body Seal | EPDM / NBR O-ring |
| End Connection | Threaded BSP / NPT |
| Pressure Rating | PN25 |
| Temperature Range | -20°C to +120°C |
| Size Range | DN8 – DN50 (1/4″ – 2″) |
| Handle | Lever handle (zinc-plated steel) |
| Bore | Full bore (standard) |
| Standard | EN 331 / ISO 17292 / EN-13828 |
Applications
- Potable water shut-off and isolation
- compressed air and gas service
- natural gas distribution
- HVAC chilled and hot water isolation
- general industrial utility lines
- pneumatic and hydraulic control circuits
Key Features
- One-piece body — no body joint leakage path
- quarter-turn operation — fast on/off
- bubble-tight PTFE seats
- compact and lightweight design
- screwdriver slot on stem for actuator adaptation
- low torque — easy manual operation
